FR4210HN 12V DC 20 GPM Fuel Transfer Pump
par FILL-RITE
Prix d'origine
$766.79
-
Prix d'origine
$766.79
Prix d'origine
$766.79
$766.79
-
$766.79
Prix actuel
$766.79

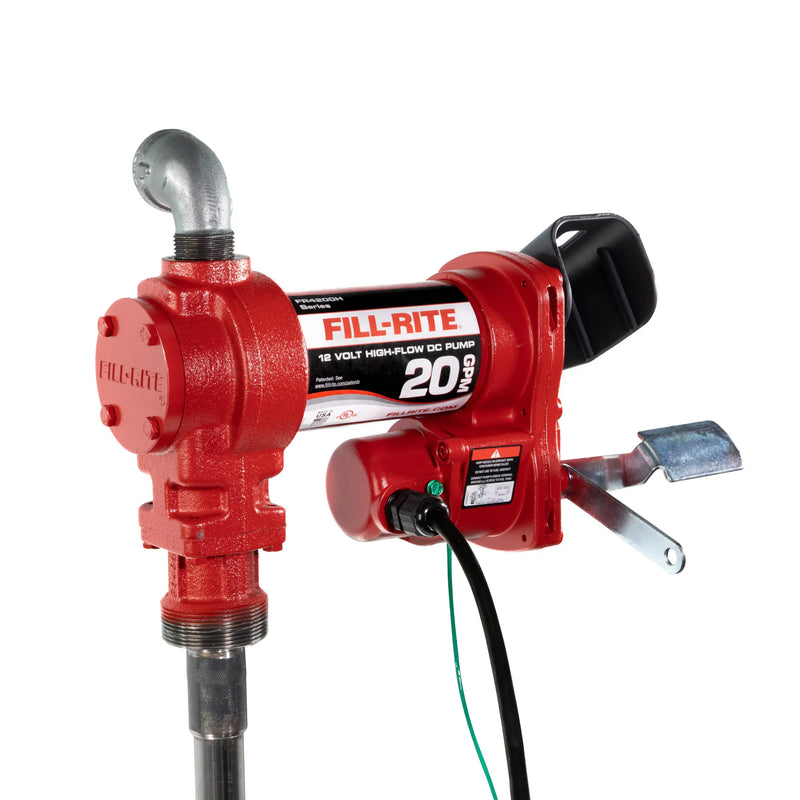

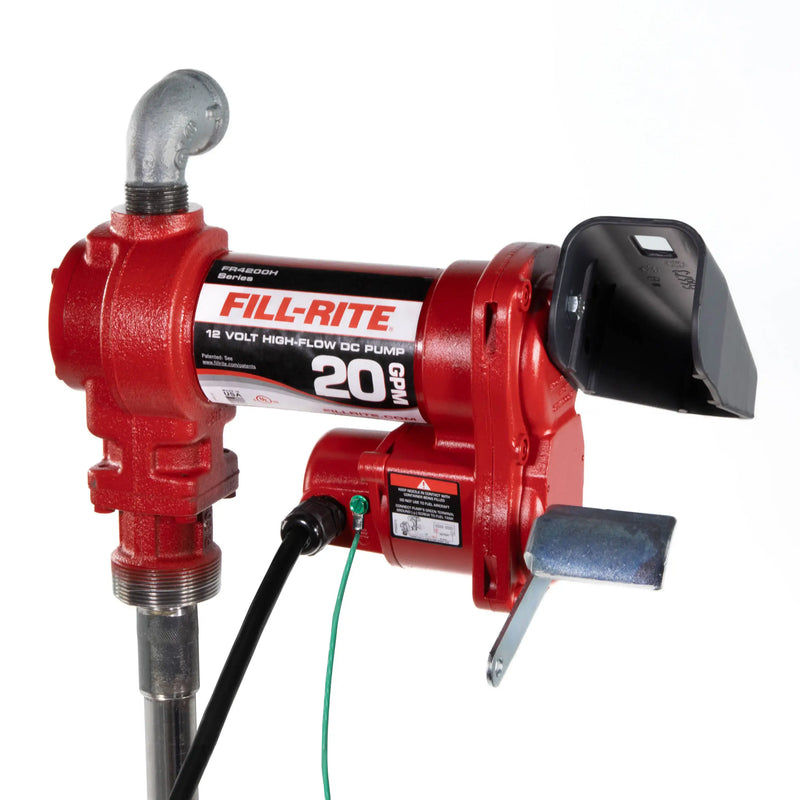

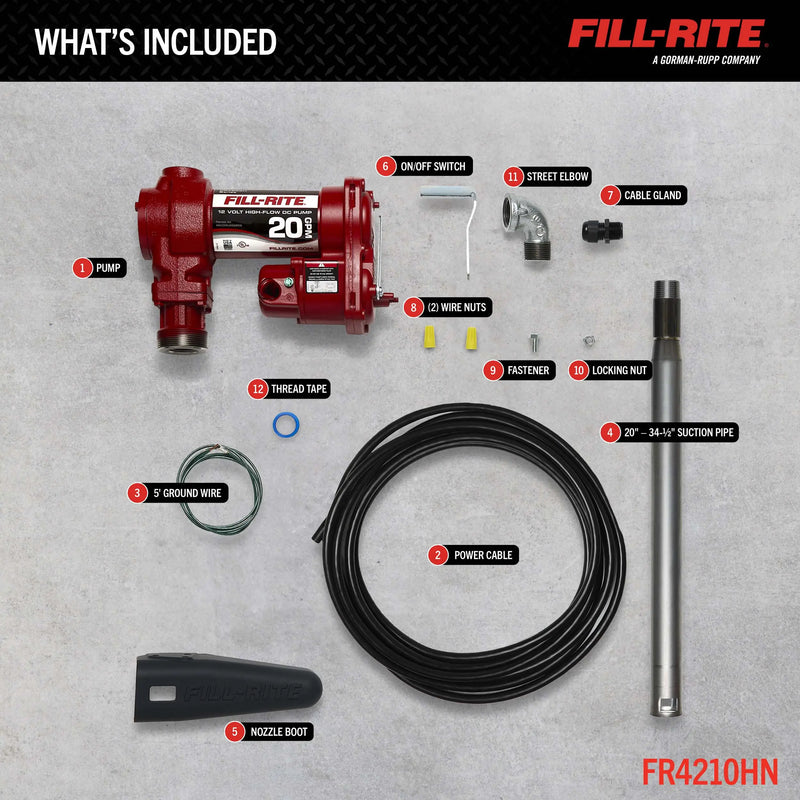

The FR4210HN model is a 12V DC, 20 GPM, heavy-duty fuel transfer pump. This pump and accessory bundle comes complete with a suction pipe and installation components.
Features
- Cast-Iron Construction – heavy-duty, cast-iron construction provides unmatched durability, withstanding the harshest conditions out in the field or at the job site
- Reliable Performance – Fill-Rite’s trusted rotary vane pump technology delivers 20 gallons per minute, perfect for filling equipment with fuel tanks from 20-80 gallons

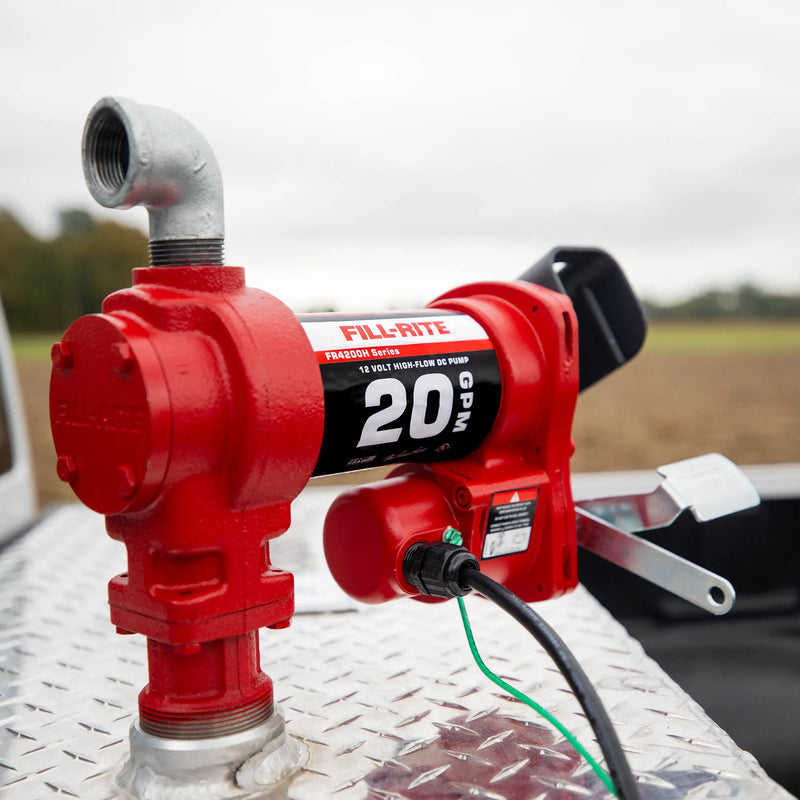

- Mobile Tanks – powered by a 12V motor and equipped with a 2 inch bung mount, this pump is ideal for wiring to 12 volt batteries and installing onto transfer tanks in truck beds
- Fluid Compatibility – designed for daily use with gasoline, diesel, ethanol blends up to E15, biodiesel blends up B20, kerosene, and mineral spirits
- Easy Installation – adjustable electrical junction box rotates 180° for easier wiring and more flexible installations in tight spaces
- Long Life – thermally-protected motor prevents overheating, ensuring your pump performs for years worry free
- Equipment Safeguard – built-in mesh strainer filters out particulates in your fuel, preventing damage to your equipment
- Reliable On-Off Switch – on-off switch lever features a robust metal stopping arm, preventing premature failure from repeated use
| Max Flowrate | 20 GPM / 75 LPM |
|---|---|
| Power Type | 12V DC |
| Compatible Fluids | Diesel, Kerosene, Biodiesel up to B20, Gasoline up to E15, Mineral Spirits |
| Inlet Size / Connection / Thread | 1 " / Female / NPT |
| Outlet Size / Connection / Thread | 1 " / Female / NPT |
| Mounting Size / Thread / Type | 2" / NPT / Bung Mount |
| Duty Cycle (min) | 30 min on / 30 min off |
| Power Source | Electrical |
| Motor Power (HP) | 0.25 |
| Max Current (A) | 19 A |
| Thermal Protection Switch | Yes |
| Self Priming | Yes |
| Suction Lift (ft.) | 8 ' |
| Dry Vacuum (in. Hg) | 5 |
| Operating Temperature Range (°F) | -- |
| Discharge Head (ft) | 37 ' |
| Strainer Mesh Size (Micron) | 20x20 |
| Max Operating Pressure (PSI) | 16 |
| Viscosity Range (cSt) |
1 to 4 |
