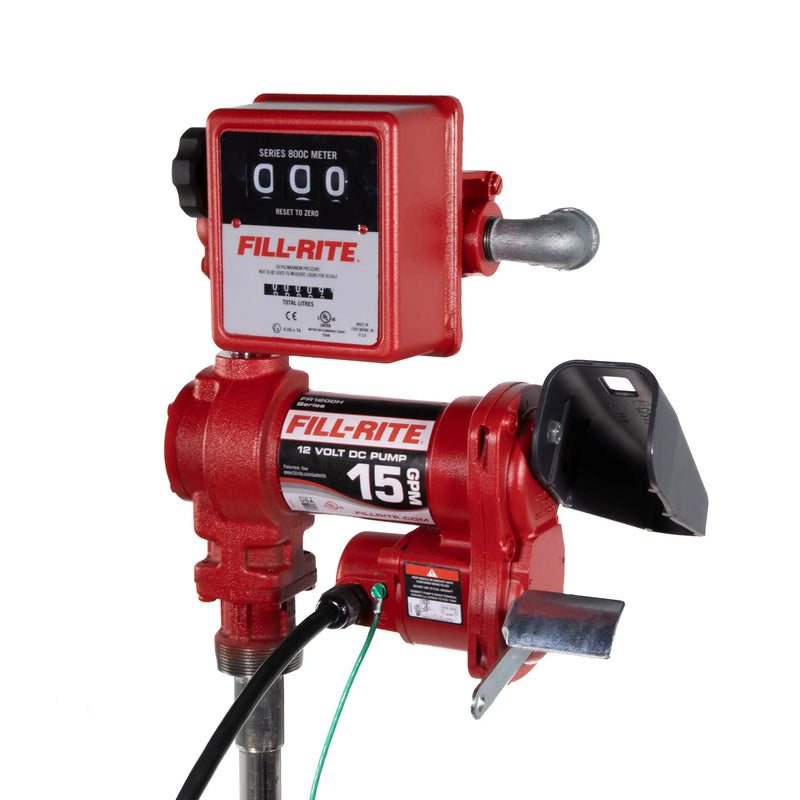

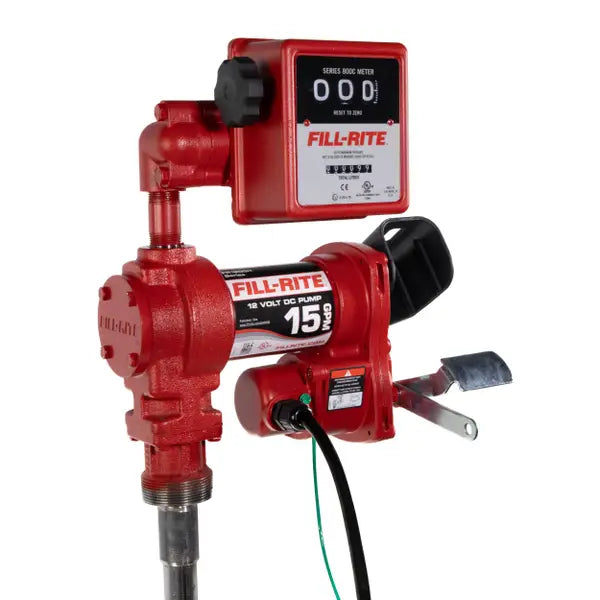

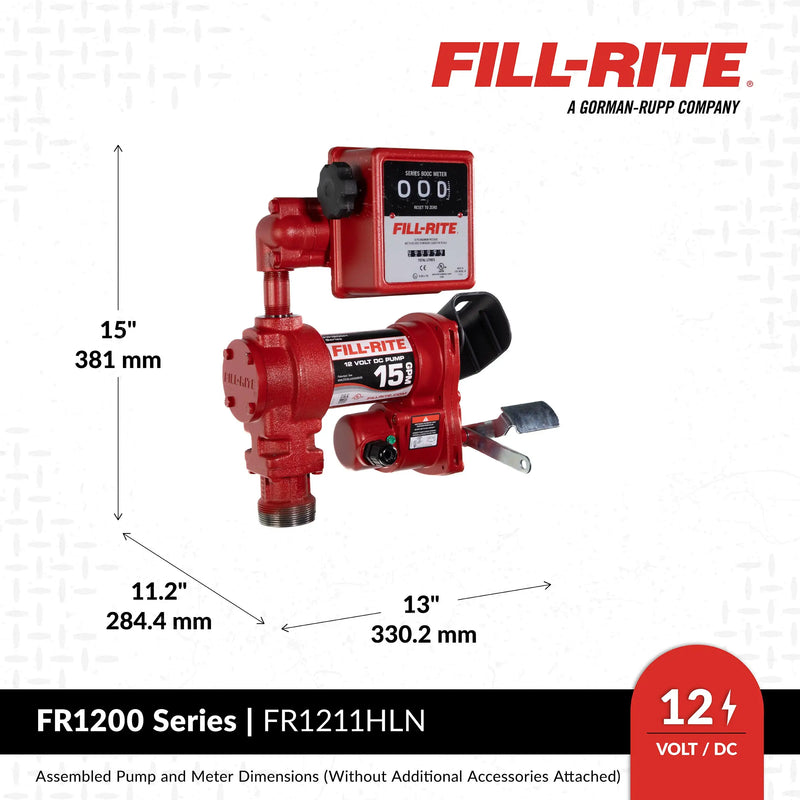

FR1211HLN 12V DC 57 LPM Fuel Transfer Pump with Meter

par FILL-RITE
Prix d'origine $937.19 - Prix d'origine $937.19
Prix d'origine
$937.19
$937.19 - $937.19
Prix actuel $937.19
FR1200 Series

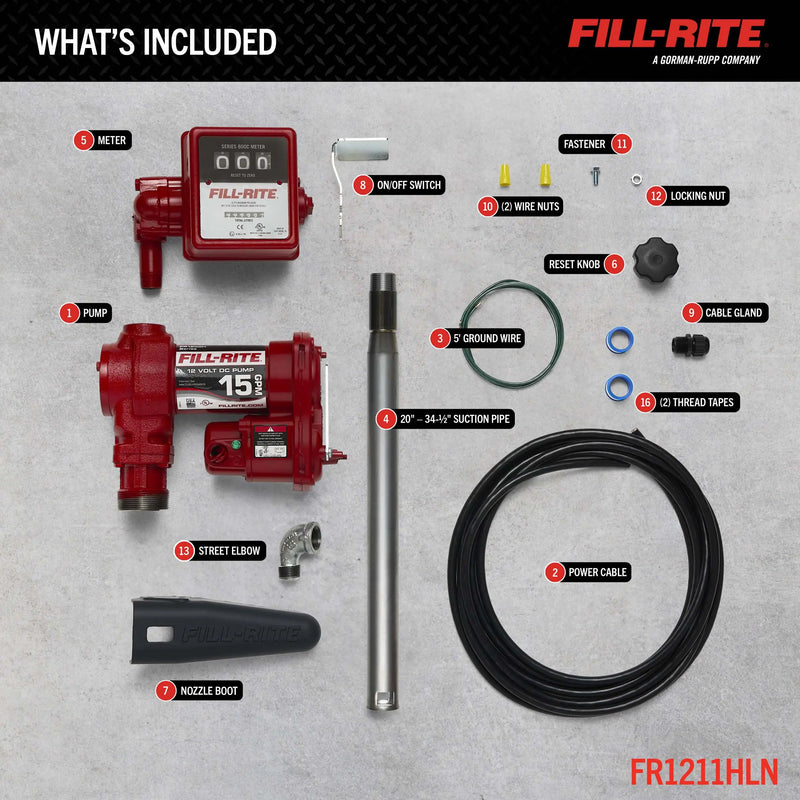

The FR1211HLN model is a 12V DC, 57 LPM, heavy-duty fuel transfer pump. This pump and accessory bundle comes complete with a meter and installation components.
Features
  • Cast-Iron Construction – heavy-duty, cast-iron construction provides unmatched durability, withstanding the harshest conditions out in the field or at the job site
  • Reliable Performance – Fill-Rite’s trusted rotary vane pump technology delivers 56 liters per minute, perfect for filling equipment with fuel tanks from 56-224 liters

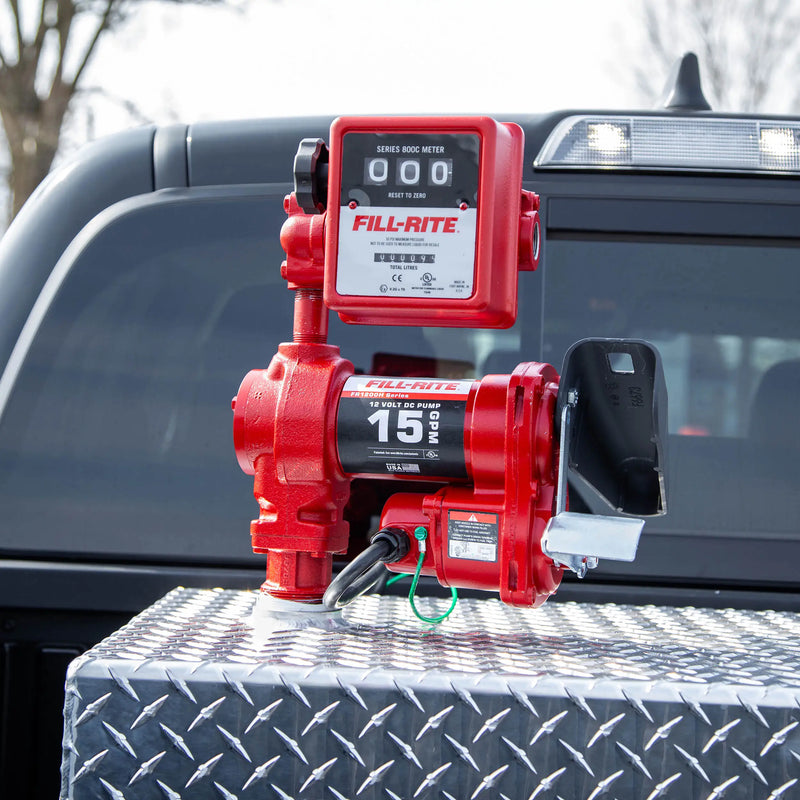

  • Mobile Tanks – powered by a 12V motor and equipped with a 2 inch bung mount, this pump is ideal for wiring to 12 volt batteries and installing onto transfer tanks in truck beds
  • Fluid Compatibility – designed for daily use with gasoline, diesel, ethanol blends up to E15, biodiesel blends up B20, kerosene, and mineral spirits
  • Easy Installation – adjustable electrical junction box rotates 180° for easier wiring and more flexible installations in tight spaces
  • Long Life – thermally-protected motor prevents overheating, ensuring your pump performs for years worry free
  • Equipment Safeguard – built-in mesh strainer filters out particulates in your fuel, preventing damage to your equipment
  • Reliable On-Off Switch – on-off switch lever features a robust metal stopping arm, preventing premature failure from repeated use
  • Limited Lifetime Warranty – we stand behind our product with an industry-leading Limited Lifetime Warranty, protecting your investment

You work through all kinds of conditions, so why shouldn’t your fuel transfer pump? Fill-Rite Company has set the standard for reliable fuel transfer pumps, meters, and accessories. Our customers recognize Fill-Rite for its durability and years of elite performance in the field. Proudly made in the USA with global materials, Fill-Rite equipment is constructed with heavy-duty materials to withstand rugged everyday use, extreme weather exposure, and both on and off-road applications. Fill-Rite is supported by a wide network of distributors and retailers, ensuring you will always be able to find replacement parts and rebuild kits for your fuel transfer equipment.

More Information
Max Flowrate 15 GPM / 57 LPM
Power Type 12V DC
Compatible Fluids Diesel, Kerosene, Biodiesel up to B20, Gasoline up to E15, Mineral Spirits
Inlet Size / Connection / Thread 1 " / Female / NPT
Outlet Size / Connection / Thread 0.75 " / Female / NPT
Mounting Size / Thread / Type 2" / NPT / Bung Mount
Duty Cycle (min) 30 min on / 30 min off
Power Source Electrical
Motor Power (HP) 0.25
Max Current (A) 20 A
Thermal Protection Switch Yes
Self Priming Yes
Suction Lift (ft.) 8 '
Dry Vacuum (in. Hg) 5
Operating Temperature Range (°F) --
Discharge Head (ft) 37 '
Strainer Mesh Size (Micron) 20x20
Max Operating Pressure (PSI) 16
Viscosity Range (cSt) 1 to 4
Repeatability (+/- %) 0.38 %
Pulse Rate --
Accuracy (+/- %) 1 %
Display Digits 3
Display Type Mechanical
Battery Quantity --
Battery Size --
Battery Type --
Batteries Included --
Batteries Required --
