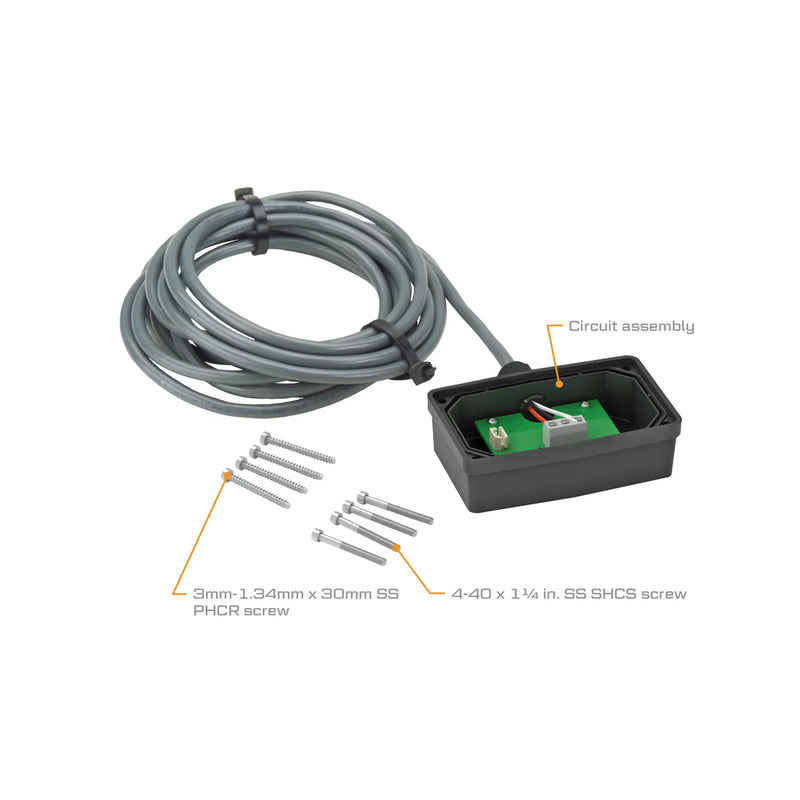

Conditioned Signal Output Module for Turbine Flow Meters 113435-10
par GPI
Prix d'origine
$401.98
-
Prix d'origine
$401.98
Prix d'origine
$401.98
$401.98
-
$401.98
Prix actuel
$401.98
Description
The FLOMEC® Conditioned Signal Output Module provides an unscaled discrete output. This amplified, digital signal is capable of transmission up to 5,000 feet (1.5 kilometers). There is no need for additional signal conditioning or amplification devices to achieve the desired digital signal. Use on a blind (no display) G2, A1, or TM series meter.
NOTE: This module is not FM Approved. Therefore, using this module with an approved metering system voids FM Approval.
FEATURES
- SIGNAL TYPE: Discrete Output
- POWER: External 9 to 35 V (dc), approximately 1mA, required
- CABLE: 10 ft. (3 m) Belden #9363 STRAIN RELIEF: Hubble PG7
- CONNECTION: Three wire
- Operating temperature range of -40°F to +185°F (-40°C to +85°C)
- Provides a blind Discrete Output option
