Remote Dispenser with 8-150 L/min 1/2% Mechanical Fuel Meter 143650-22
Estimated lead time: 2 to 3 weeks.
Description
GPRO Remote Dispenser 8-150 L/min oval gear, mechanical fuel meter.

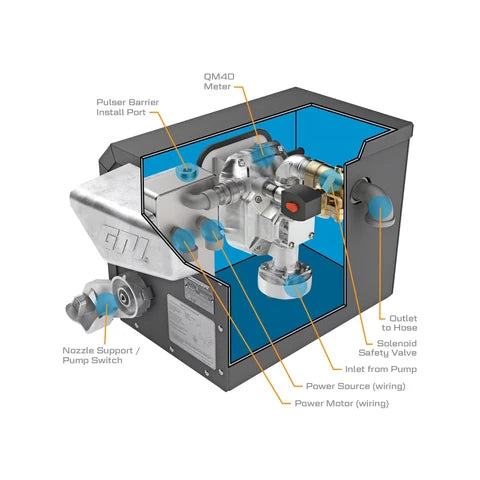

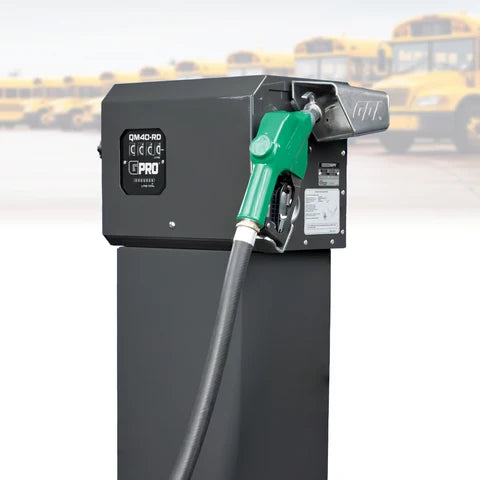

The GPRO Remote Dispenser System provides ground-level access to meter and nozzle when used on in-ground or above-ground tanks.
NOTE: Optional gear kit available for gasoline applications: Gas Gear Kit
The GPRO QM40 delivers extreme oval gear accuracy, extreme value! The QM40 is designed for use with pump systems with a flow range of 8-150 L/min (2 to 40 GPM) flow range. This oval gear positive displacement meter provides precision fuel measurements and accurate readings for fleet operations, heavy equipment, and agricultural applications. It features a magnetic drive mechanism that prevents leaks and reduces drag which allows for more accurate readings.
This model features LITRES unit readings.
SPECIFICATIONS
| Compatible Fluids | Diesel Fuel up to B20 | Gasoline up to E15 | Kerosene |
| Technology | Oval Gear |
| Duty Cycle | Continuous |
| Operating Temperature | -40° F to 125° F (-40° C to 52° C) |
| Wetted Materials | Acetal | Aluminum | Brass | Cast Iron | FKM | NBR | Neodymium | PPS | Stainless Steel |

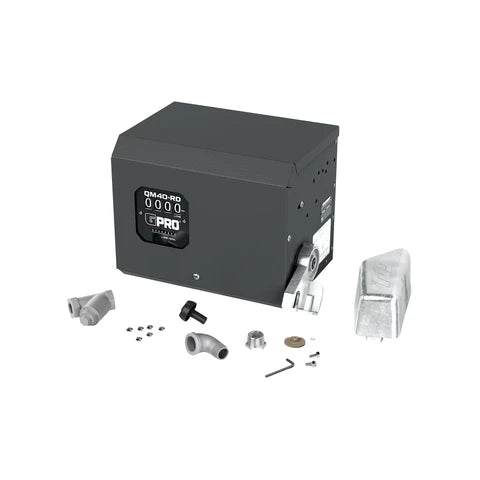

| What's in the Box | QM40 Remote Dispenser Meter with litre register, installed in Cabinet, (1) Nozzle cover and hardware, (1) 90-degree elbow fitting, (1) 3/4-inch reducer bushing, (1) Reset knob, (1) Unleaded fuel gear, (1) Y-Strainer, (1) 5 mm L-Key hex wrench, Owner's manual, and Filter installation instructions |
| Warranty | Limited Lifetime Warranty |
| UPC | 0 31401 01192 0 |
MODEL: QM40-L8N-RD
