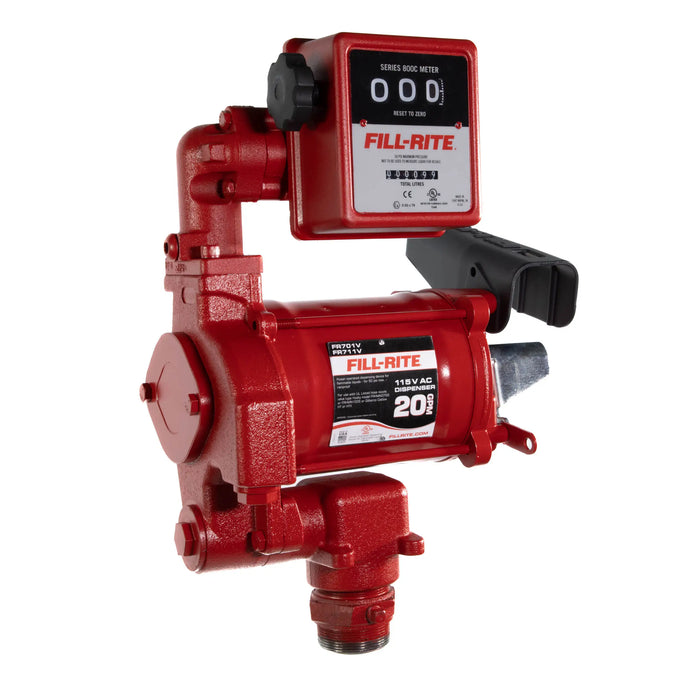

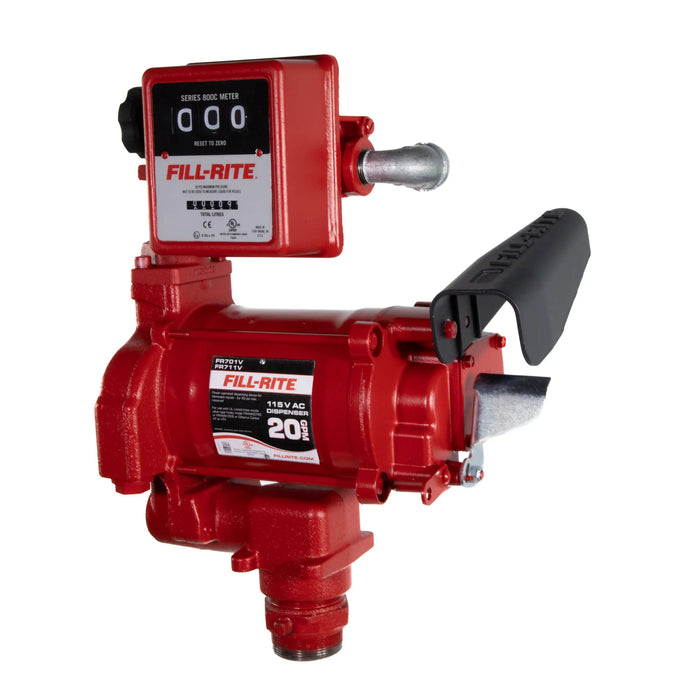

FR701VLN 115V AC 20 GPM Fuel Transfer Pump with Meter
by FILL-RITE
Original price
$1,377.39
-
Original price
$1,377.39
Original price
$1,377.39
$1,377.39
-
$1,377.39
Current price
$1,377.39

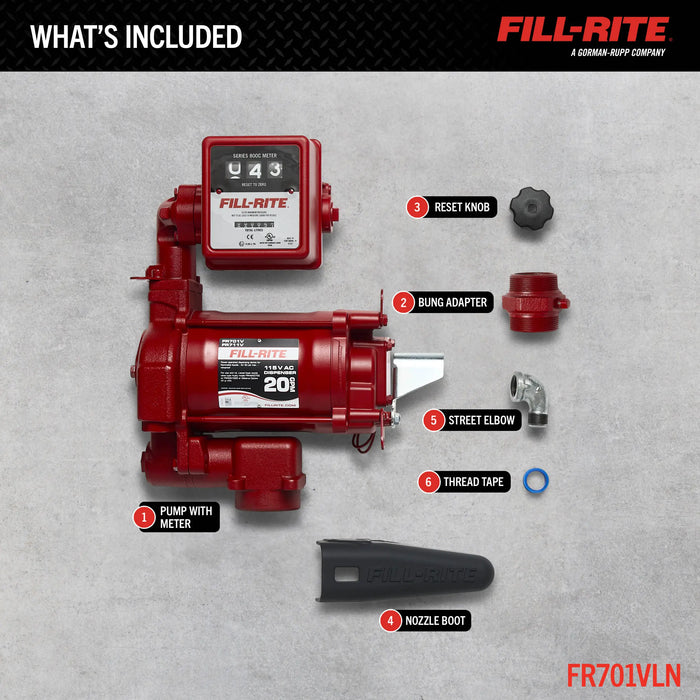

The FR701VLN model is a 115V AC, 75 LPM, heavy-duty fuel transfer pump. This pump and accessory bundle comes complete with a meter and installation components.
Features
- Cast-Iron Construction — heavy-duty, cast-iron construction provides unmatched durability, withstanding the harshest conditions out in the field or at the job site
- High Performance — Fill-Rite’s trusted rotary vane pump technology delivers 75 liters per minute, perfect for filling large equipment with fuel tanks sized at 75-302 liters
- Stationary Tanks — powered by a 115V AC motor and equipped with a 2 inch bung mount, this pump is ideal for wiring to a standard 115 volt AC electrical supply and installing onto stationary aboveground tanks
- Reliable Technology — rotary vane technology naturally maintains its day one performance levels as it wears down from normal use, allowing for consistent performance over the entire life of the pump
- Long Life — thermally-protected motor prevents overheating, ensuring your pump performs for years without worry
- Equipment Safeguard — built-in mesh strainer filters out particulates in fuel, preventing damage to your equipment
| Max Flowrate | 20 GPM / 75 LPM |
|---|---|
| Power Type | 115V AC |
| Compatible Fluids | Diesel, Kerosene, Biodiesel up to B20, Gasoline up to E15, Mineral Spirits, Heptane, Stoddard Solvents |
| Inlet Size / Connection / Thread | 1.25 " / Female / NPT |
| Outlet Size / Connection / Thread | 0.75 " / Female / NPT |
| Mounting Size / Thread / Type | 2" / NPT / Bung Mount |
| Duty Cycle (min) | 30 min on / 30 min off |
| Power Source | -- |
| Motor Power (HP) | 0.33 |
| Max Current (A) | 5.5 A |
| Thermal Protection Switch | -- |
| Self Priming | -- |
| Suction Lift (ft.) | 15 ' |
| Dry Vacuum (in. Hg) | 12 |
| Operating Temperature Range (°F) | -- |
| Discharge Head (ft) | 53 ' |
| Strainer Mesh Size (Micron) | 40 x 40 x .010" |
| Max Discharge Pressure (PSI) | 23 PSI |
| Viscosity Range (cSt) | 0.38 - 2.4 |
| Repeatability (+/- %) | 0.38 % |
| Pulse Rate | -- |
| Accuracy (+/- %) | 1 % |
| Display Digits | 3 |
| Display Type | Mechanical |
| Battery Quantity | -- |
| Battery Size | -- |
| Battery Type | -- |
| Batteries Included | -- |
| Batteries Required | -- |
| AC Frequency (Hz) | 60 |
