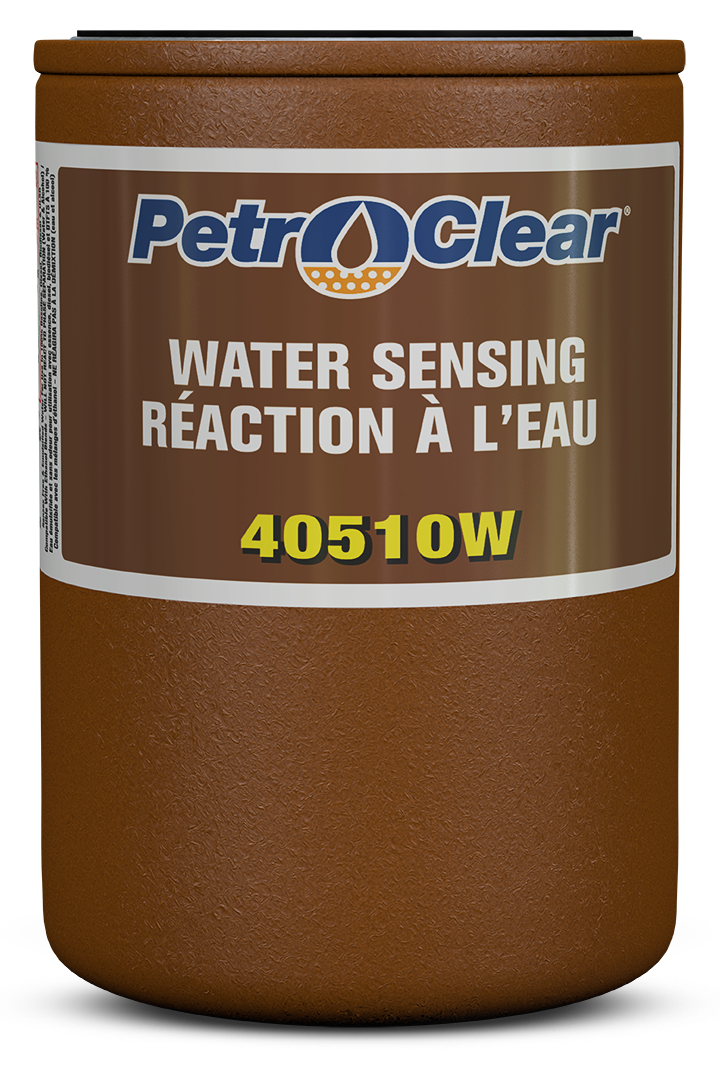

PETRO CLEAR 40510W FILTER 3/4 IN

CHARACTERISTICS

• The PetroClear® Model 40510W uses 10 micron (nominal) cellulosic media to remove particulates from gasoline and diesel fuels, including biodiesel and ULSD (Ultra Low Sulfur Diesel). Removes particles 10 microns (nominal) or larger. This filter uses a super absorbent chemical that is laminated to the filter media for water detection capabilities in pure gasoline and diesel fuels .
• The PetroClear® Model 40530W uses 30 micron (nominal) cellulosic media to remove particulates from gasoline and diesel fuels, including biodiesel and ULSD (Ultra Low Sulfur Diesel). Removes particles 30 microns (nominal) or larger. It uses a super absorbent chemical that is laminated to the filter media for water detection capabilities in both gasoline and diesel trim applications.
• When the PetroClear® 40510W and 40530W models absorb 5.9 ounces (175 mil) of water from clean gasoline or diesel fuels, the flow will be noticeably slow.
• Maximum flow rate for PetroClear® 40510W and 40530W models is 25 gpm (94.6 lpm). Maximum operating pressure is 50 psid (3.4 bar). Collapse pressure is 150 psid (10.3 bar). Maximum operating temperature is 250°F (139°C).
• PetroClear® Models 40510W and 40530W use a standard 1"-12 UNF (3/4" flow) mounting thread required for most spin-on filter adapters used in aftermarket and/or high throughput applications such as Gilbarco, Wayne, Bennet, Tokheim and other major manufacturer distributors.
• Adapters are available for the 40510W and 40530W models in aluminum and cast iron. These single adapters are available in 3/4" inlet/outlet and 1" NPT or BSP threads.

BENEFITS

• PetroClear® models 40510W and 40530W are particulate removing and water sensing spin-on filters designed to remove particulate and to sense both free and emulsified water from neat gasoline, diesel, Biodiesel, ULSD (Ultra Low Sulfur Diesel), kerosene and fuel oils.
• PetroClear® models 40510W and 40530W are particulate and water sensing spin-on filters. These filters are designed to sense water, both free and emulsified, and slow flow as an indicator of the presence of water in neat gasoline and diesel fuels. This filter will not sense nor react to water in Ethanol blended gasoline. (Reaction known as phase separation)
• PetroClear® model 40510W filter offers efficient 10 micron (nominal) particulate removal and senses both free and emulsified water in neat gasoline and diesel fuels.
• PetroClear® model 40530W filter offers efficient 30 micron (nominal) particulate removal and senses both free and emulsified water in neat gasoline and diesel fuels.
• Textured paint coating helps ensure a simple, mess-free installation and removal process.
• UL® recognized
• Will not detect phase separation in Ethanol blended fuels.
