COMBO WESTEEL TRANSFER TANK FOR DIESEL OR PETROL 830 L RV830W-1

by WESTEEL
Save 7% Save 7%
Original price $3,081.88
Original price $3,081.88 - Original price $3,081.88
Original price $3,081.88
Current price $2,879.88
$2,879.88 - $2,879.88
Current price $2,879.88
WESTEEL TRANSFER TANK FOR DIESEL OR GASOLINE 830L RV830 WITH 18 GPM PUMP

Easy to install and move Road-Vault tank (Newly redesigned line)

Transport Canada Approved

Important features of this product include:

The 285L, 290L, 450L, 545L models have a low profile design that can fit in the back of a pickup truck without obstructing the view of the rear window

Circular pump mounts on all models helps eliminate coating issues

J-screw tie-down on all models allows for ease of installation and removal

Included lifting rings can be used to move the fuel tank inside

Three standard features on all models, with additional accessories available as options

Integrated deflector system on 830L, 680L, 545L, 450L, 285L increases rigidity and reduces fuel sloshing

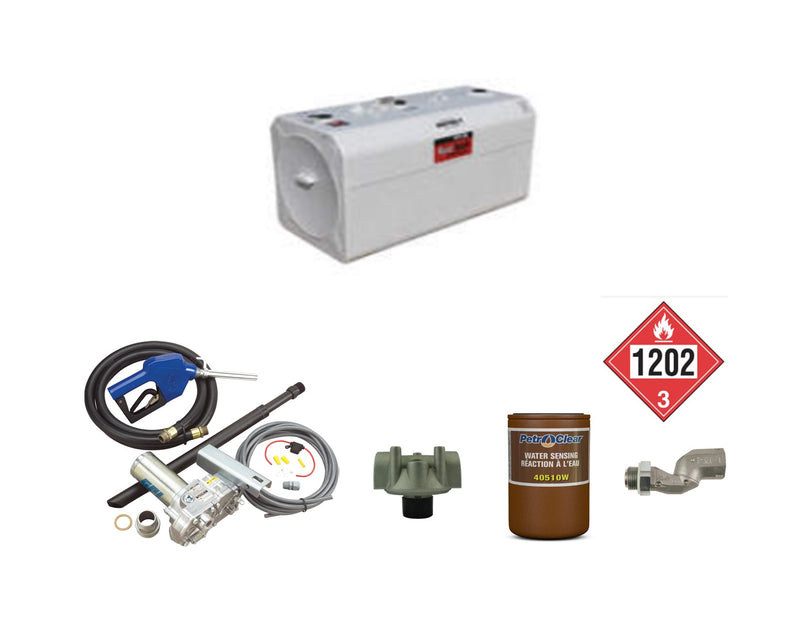

1X RV830

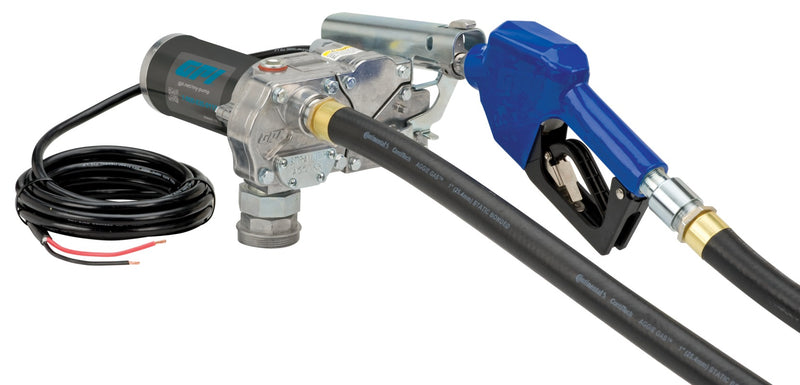

1 X GPI M-180S-AU PUMP / 18 GPM

1 X SWIVEL (3/4" ) (AC3434)

1 X 1" ALUMINUM ADAPTER (1.0N1.5)

1 X FILTER (WATER & PARTICLE) (40510W-AD)

4 X TIGHTS 1202

1 X GALVANIZED FITTING (TN100X3)

1 X GASOILA SOFT-TREND 473 ML SS08

The newly redesigned line of Road-Vault® single wall tanks from Westeel set the bar for mobile and convenient fuel storage.
Their robust design has been engineered to provide environmentall safe mobile transportation of flammable or combustible liquids in a Transport Canada approved container. Easy to install and move from truck to truck, the mobile single wall storage system delivers the standard features your mobile refueling application deserves, complete with an ownership on safe transport practices.
Important features of this product include:

  • Embossed heads on 290L, 450L, 545L, 680L, and 830L models add stiffening properties
  • 285L, 290L, 450L, and 545L models have a low-profile design that can sit in the back of a pickup truck without obstructing the view out of the rear window
  • 285L model also fits between the wheel wells and back window, allowing the user to accommodate botoh the fuel tank and fifth wheel attachment
  • Circular pump mounts on all models eliminate coating issues
  • J-bolt tie down on all models allows for ease of installation and removal
  • Optional lifting lugs can be used to move the tank with fuel inside
  • Three standard fittings on all models, with optional extra fittings available
  • Integral baffle system on 830L, 680L, 545L, 450L, and 285L models increases structural rigidity and decreases fuel sloshing
Part # Model Description Capacity Width Length Height Weight (Empty) Weight (Full)
RV285 63 imp gal 16.2 in 54.5 in 20.7 in 165 lbs 702 lbs
RV290 64 imp gal 29.3 in 30.7 in 20.7 in 140 lbs 686 lbs
RV450 99 imp gal 29.3 in 47.4 in 20.7 in 220 lbs 1067 lbs
RV545 121 imp gal 29.3 in 58.5 in 20.7in 250 lbs 1286 lbs
RV680 150 imp gal 293 in 47.4 in 30.9 in 295 lbs 1576 lbs
RV830 183 imp gal 29.3 in 58.5 in 30.9 in 320 lbs 1883 lbs

.
