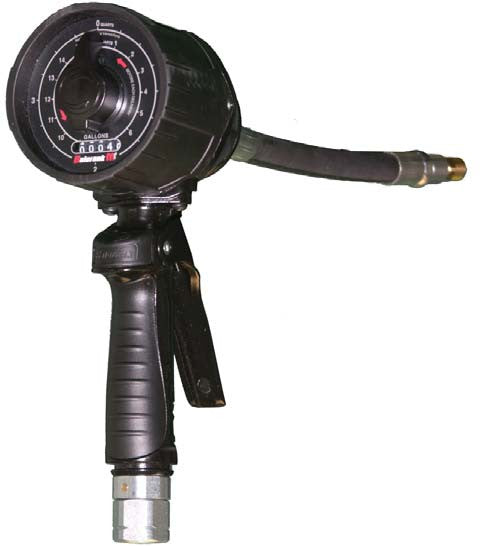

MECHANICAL REGISTRY METER CONTROL HANDLE
par Balcrank
Prix d'origine
$590.51
-
Prix d'origine
$700.51
Prix d'origine
$621.95
$590.51
-
$700.51
Prix actuel
$621.95
SPECIFICATIONS
Flow Range: 0.5-5.3 gal/min (2-20 l/min)
Max pressure: 1,450 psi (100 bar)
Dispense Nozzle OD:
Auto = 0.605”
Manual ¼ turn for OIL = 0.705”
Manual ¼ turn for ATF= 0.315”
Verify ID of ATF fill port for compatibility
Swivel inlet: 1/2” NPT(F) Swivel
Operating temp: 110 to 160 ºF (-23 to 70 ºC). Suitable for extreme temperature conditions
Weight: 3.75 lb (1.7 kg)
Compatible Fluids: Low to high viscosity lubricants, ATF, and Antifreeze (Glycol)
Wetted Materials: Aluminum, stainless steel, zinc alloy, Buna-N™, zinc plated steel, and brass.
| AVAILABLE MODELS | ||||
| Model | Extension Type & Nozzle | U/M | ||
| 3330-185 | Rigid | Auto | 3332-098 | Qt |
| 3330-186 | Flex 90 | Auto | 3332-094 | Qt |
| 3330-187 | Flex | Auto | 3332-095 | Qt |
| 3330-188 | Flex Memory | Auto | 3332-099 | Qt |
| 3330-189 | Rigid | 1/4 turn-OIL | 3332-091 | Qt |
| 3330-190 | Flex 90 | 1/4 turn-OIL | 3332-092 | Qt |
| 3330-191 | Flex | 1/4 turn-OIL | 3332-100 | Qt |
| 3330-192 | Flex Memory | 1/4 turn-OIL | 3332-093 | Qt |
| 3330-193 | Rigid | 1/4 turn-ATF | 3332-101 | Qt |
| 3330-194 | Flex 90 | 1/4 turn-ATF | 3332-102 | Qt |
| 3330-195 | Flex | 1/4 turn-ATF | 3332-103 | Qt |
| 3330-196 | Flex Memory | 1/4 turn-ATF | 3332-104 | Qt |
| 3330-173 | Rigid | Auto | 3332-098 | L |
| 3330-174 | Flex 90 | Auto | 3332-094 | L |
| 3330-175 | Flex | Auto | 3332-095 | L |
| 3330-176 | Flex Memory | Auto | 3332-099 | L |
| 3330-177 | Rigid | 1/4 turn-OIL | 3332-091 | L |
| 3330-178 | Flex 90 | 1/4 turn-OIL | 3332-092 | L |
| 3330-179 | Flex | 1/4 turn-OIL | 3332-100 | L |
| 3330-180 | Flex Memory | 1/4 turn-OIL | 3332-093 | L |
| 3330-181 | Rigid | 1/4 turn-ATF | 3332-101 | L |
| 3330-182 | Flex 90 | 1/4 turn-ATF | 3332-102 | L |
| 3330-183 | Flex | 1/4 turn-ATF | 3332-103 | L |
| 3330-184 | Flex Memory | 1/4 turn-ATF | 3332-104 | L |
| Verify ID of ATF fill port for compatibility. | ||||
